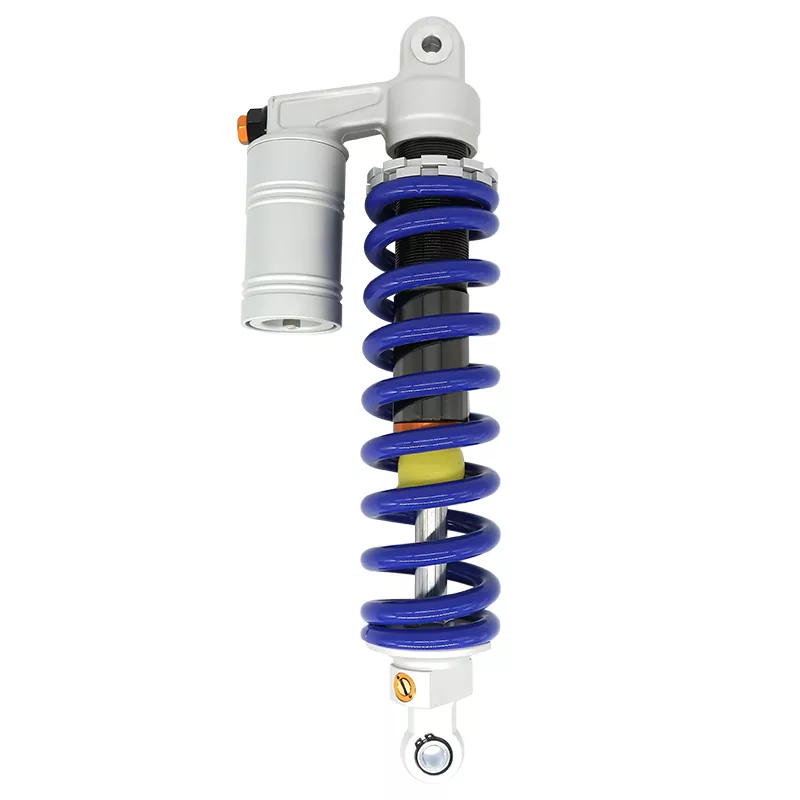

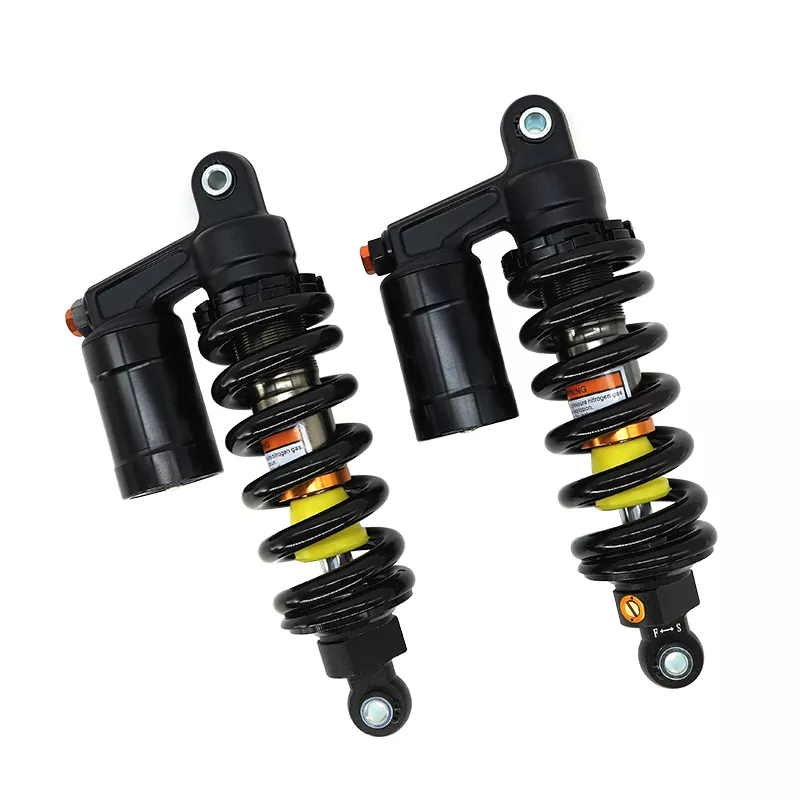

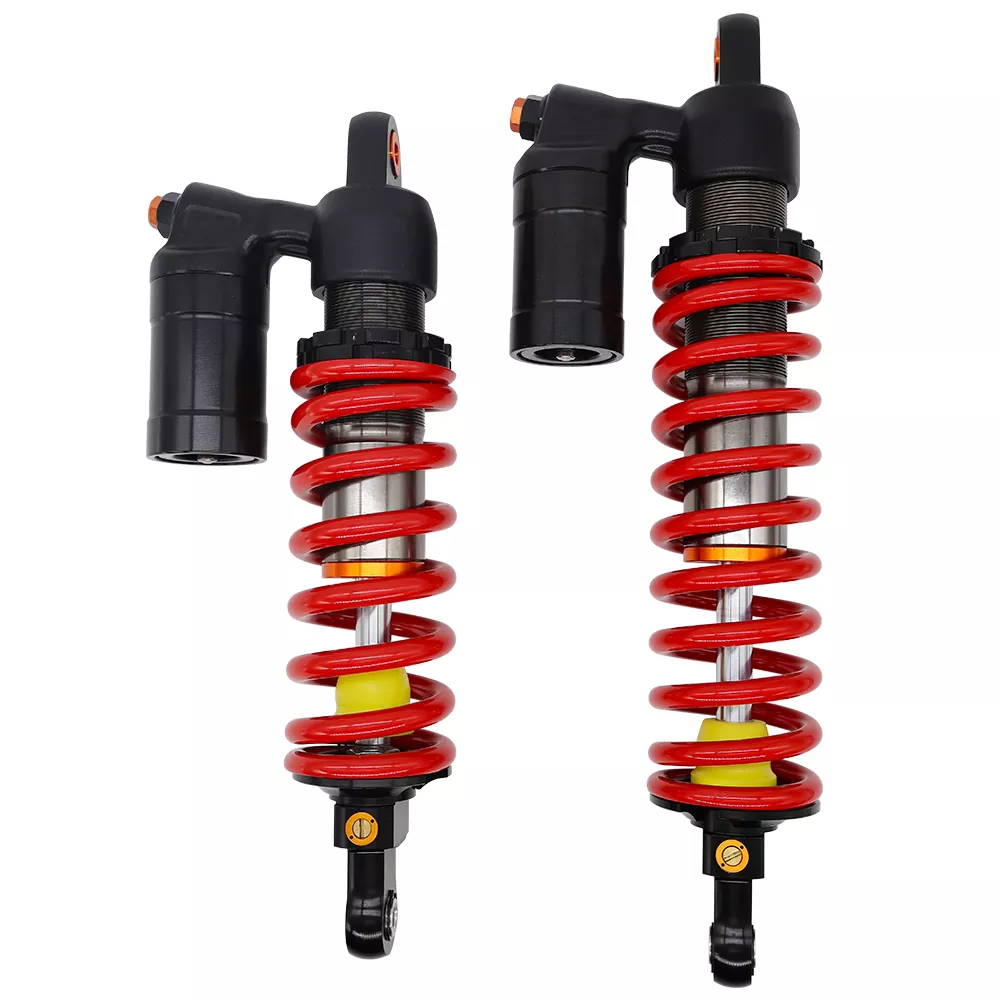

Oil-gas separation External Airbag UTV Rear Shock Absorber

Oil-gas separation external airbag UTV rear shock absorber is specially designed for UTVs, all-terrain vehicles, and hardcore off-road vehicles, serving as an upgrade option for original factory shock absorbers. They feature independent airbag chambers and high-pressure nitrogen oil-gas separation structures, significantly enhancing heat dissipation and impact resistance, suitable for complex terrains such as deserts, rocks, and mud.

Precise fitment: Oil-gas separation external airbag UTV rear shock absorber compatible with mainstream UTV models (such as RAZOR, Tuttuo, Kayo, etc.), with mounting holes matching the original design, eliminating the need for frame modifications.

Performance upgrade: the external airbag allows quick preload adjustment, with a high-strength sealed structure that effectively prevents sand and dirt from entering, extending service life.

product Feature and Parameter

Structure: Oil and gas separation, external airbag

Stroke: 30-90mm (can be customized)

Mounting hole distance: 270-400mm (more size pls contact)

Damping adjustment: multi-stage rebound/compress damping adjustable

Spring: high-strength alloy steel, can customize spring stiffness

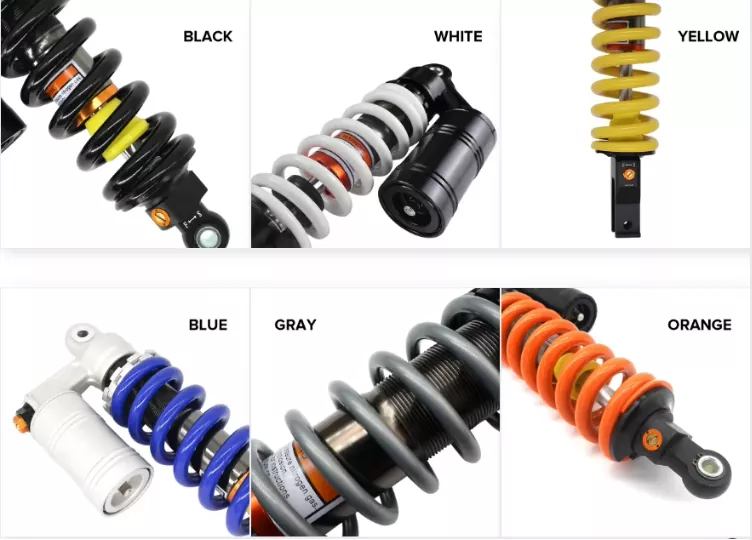

Additional services: laser logo printing, can customize spring color (black, red, blue, orange, etc.)
