Pit Bike Single Adjustable Inverted Front Fork
  • Pit Bike Single Adjustable Inverted Front ForkPit Bike Single Adjustable Inverted Front Fork
  • Pit Bike Single Adjustable Inverted Front ForkPit Bike Single Adjustable Inverted Front Fork
  • Pit Bike Single Adjustable Inverted Front ForkPit Bike Single Adjustable Inverted Front Fork

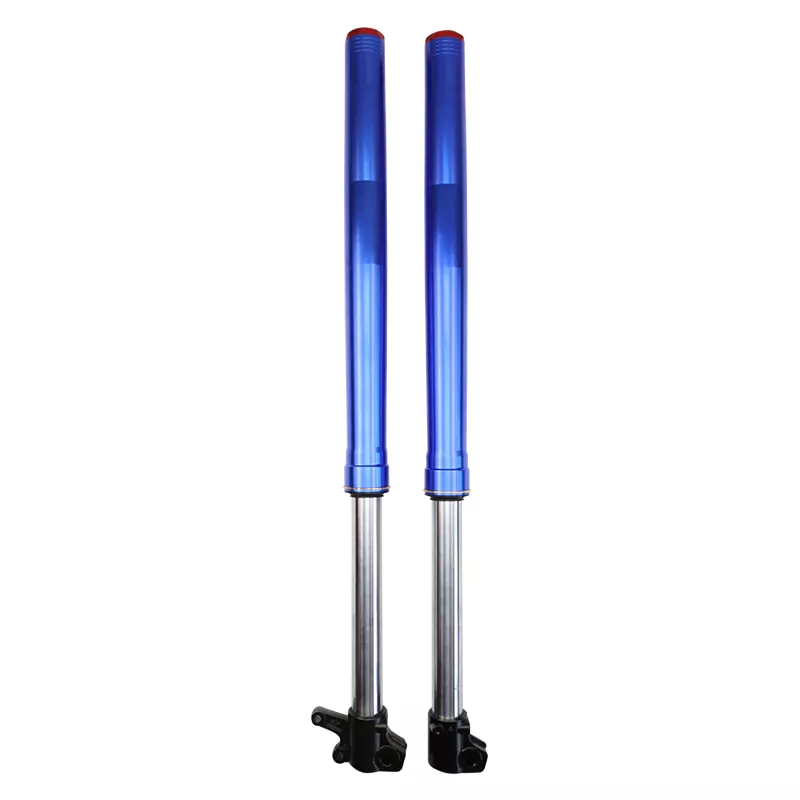

Pit Bike Single Adjustable Inverted Front Fork

SXJZ is a famous manufacturer of the Pit bike Single Adjustable Inverted Front Fork, boasting over 50 specialized machines and 13 years of experience in shock absorber production. We maintain long-term collaborations with well-known brands such as KAYO, BSE, SY,APOLLO and soon,to ensuring our products meet the highest quality standards. Committed to providing exceptional service and high-quality solutions, we cater to wholesale needs in the pit bike market. Choose Pit bike Single Adjustable Inverted Front Fork for reliable performance and innovation in every ride.

The Pit Bike Single Adjustable Inverted Front Fork features a cutting-edge inverted design that enhances rigidity and stability, providing superior handling on rough terrains.  This innovative structure lowers the center of gravity, improving the overall balance of the bike, especially during high-speed maneuvers.  Additionally, the adjustable damping system allows riders to customize the rebound settings, enabling quick adaptation to varying riding conditions.  With these advantages, the Pit Bike Single Adjustable Inverted Front Fork not only enhances performance but also elevates the riding experience for pit bike enthusiasts.

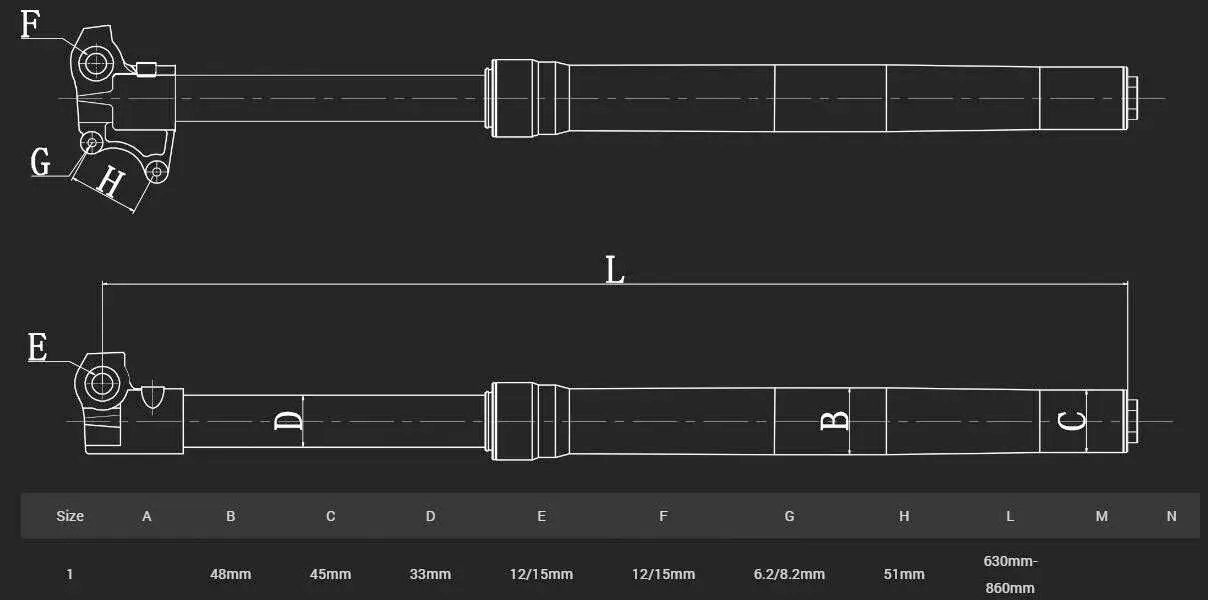

SXJZ Product Parameter(Specification)

B

C

D

E

F

G

H

/

Upper triple clamp size

Lower triple clamp size

Inner tube

Axle hole(left)

Axle hole(right)

Disc brake hole

Distance of brake hole

Stroke

45mm

48mm

33mm/37mm

12mm/15mm

12mm/15mm

6.2mm/8.2mm

51mm/56mm

100-200mm


Application of SXJZ Product

Pit Bike Single Adjustable Inverted Front Fork Pit Bike Single Adjustable Inverted Front Fork

The Pit bike Single Adjustable Inverted Front Fork features a top-mounted adjustment feature that allows riders to easily customize the rebound damping speed for optimal performance. In addition, it offers a choice of die cast or forged foot, provided according to the rider's preference. Riders can also choose to customize the interior and exterior tire colors to add a personal touch to their Pit bike. Designed primarily for use on pit bikes, off-road vehicles and two-wheel electric motorcycles, this Pit bike Single Adjustable Inverted Front Fork provides increased stability and control in all terrain and riding conditions.

The Details of SXJZ Product

Pit Bike Single Adjustable Inverted Front Fork

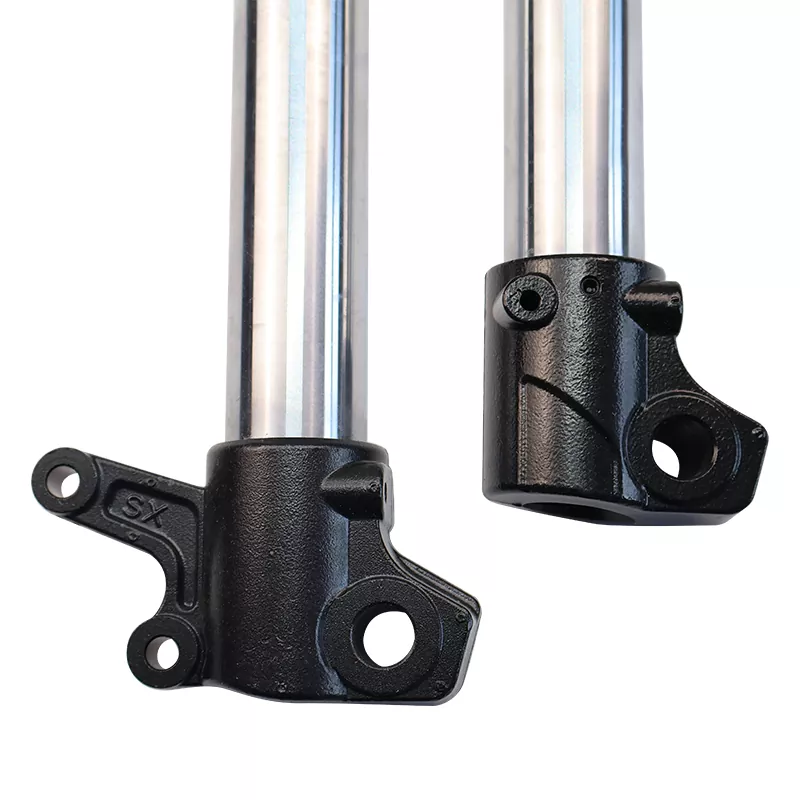

Made from 6061 aluminum alloy, the outer tube features anodized coating for improved color retention. Choose from 10 standard colors, or customize a color based on your requirements

Pit Bike Single Adjustable Inverted Front Fork

Hot Tags: Pit Bike Single Adjustable Inverted Front Fork, China, Manufacturer, Supplier, Factory, Customized, Quality, Wholesale, Made in China
